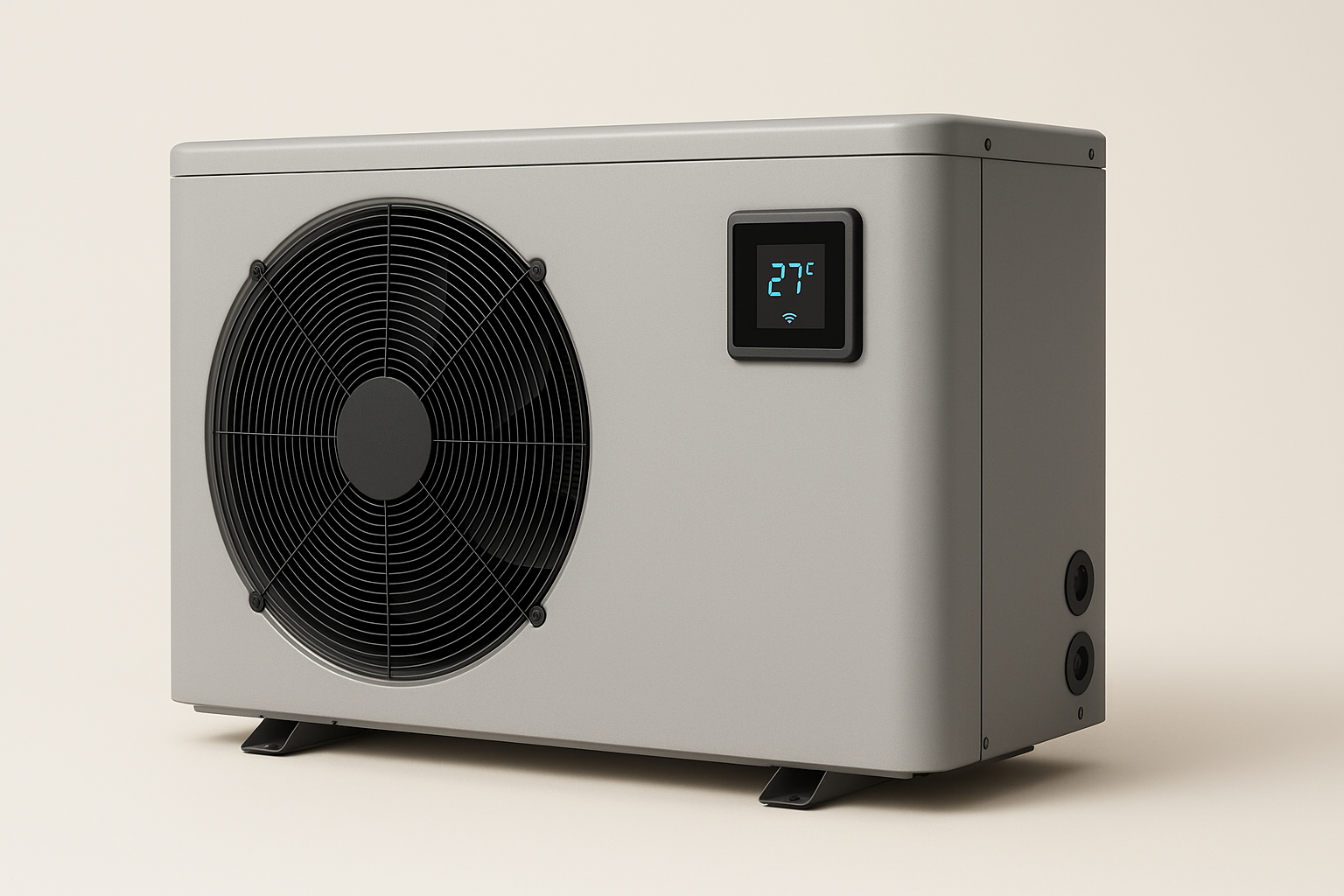

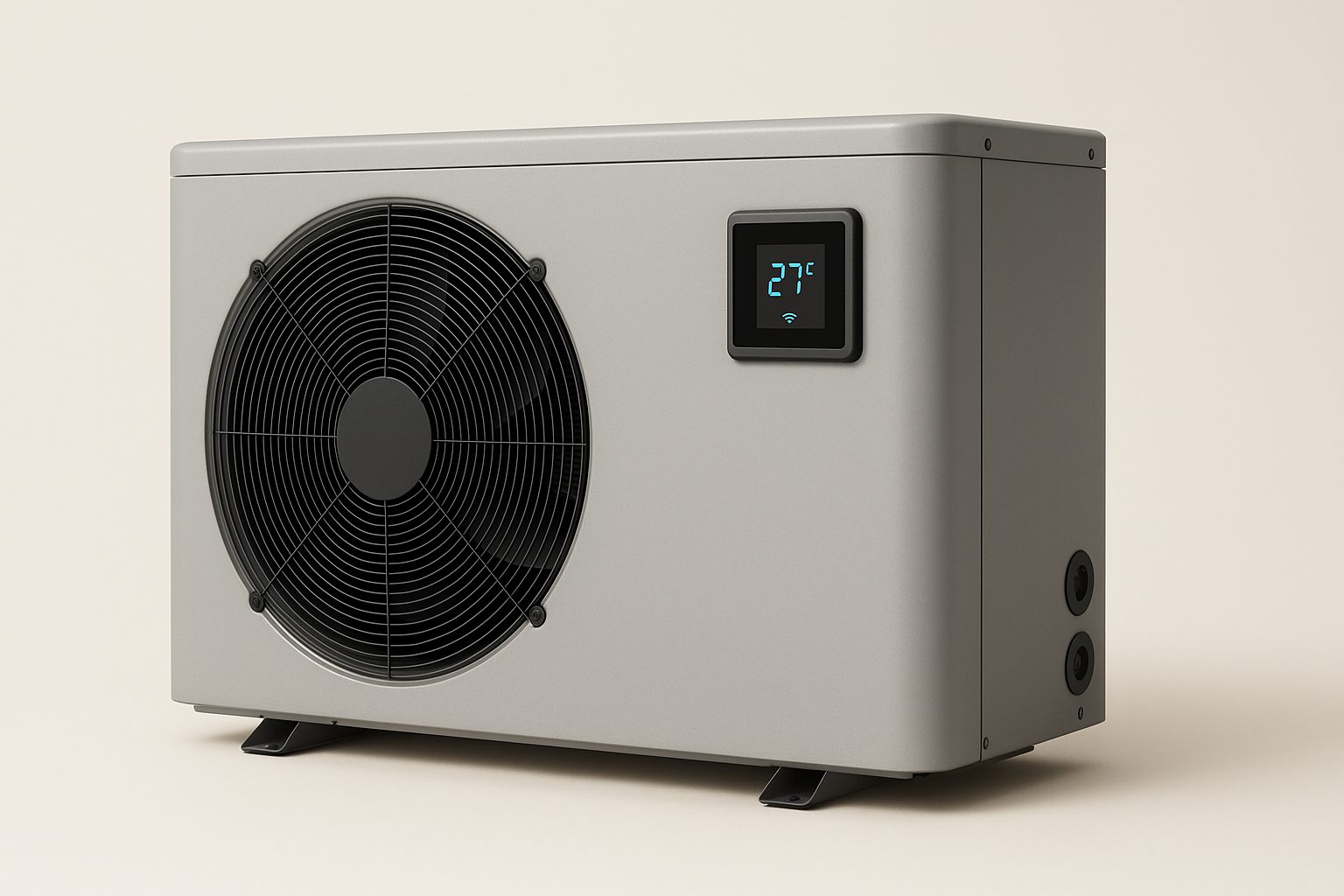

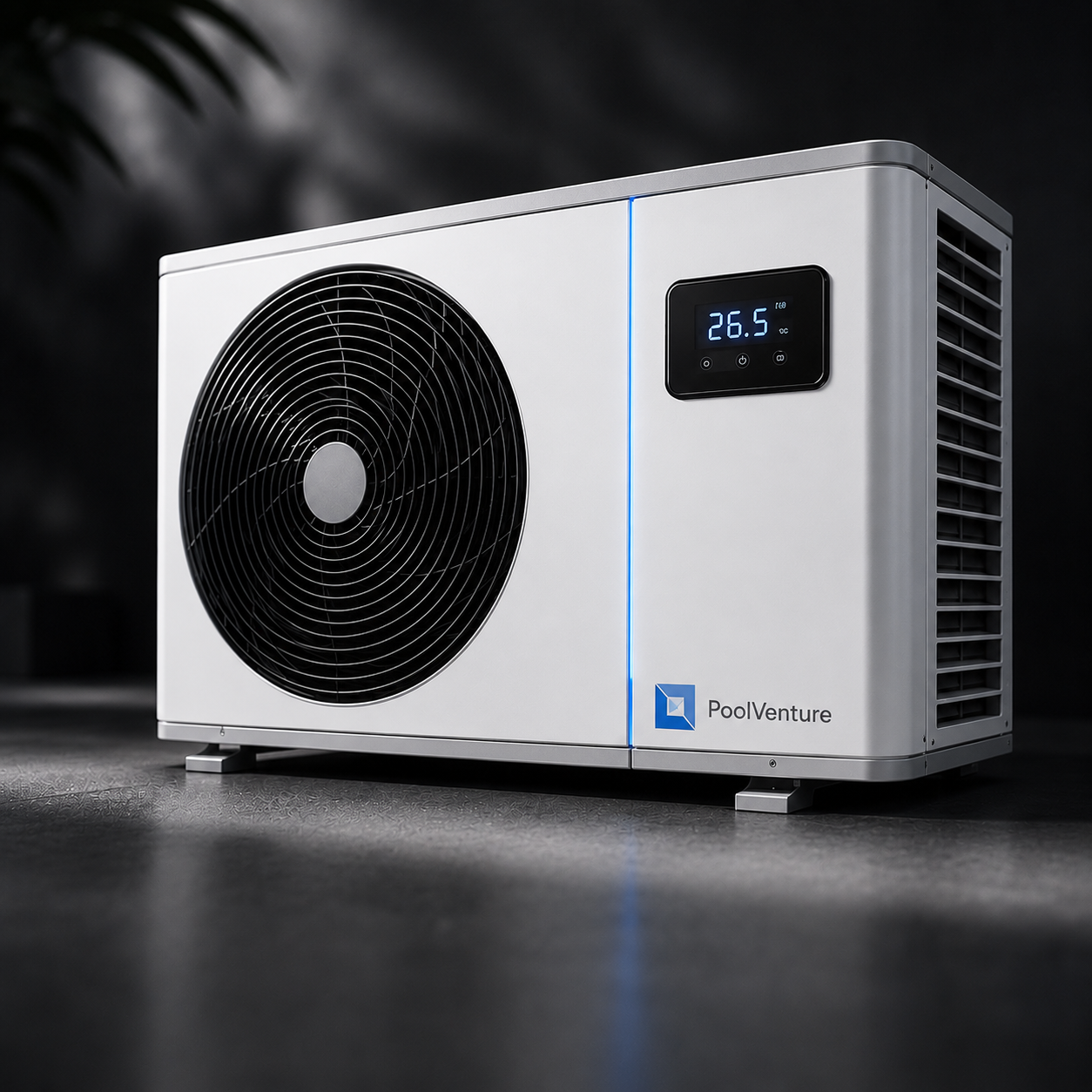

Smart Pool Heat Pump
Full-inverter heating built for Malaysia’s climate — up to 70% energy savings, whisper-quiet, and controlled entirely from your phone.
Full Inverter Technology
Unlike traditional on/off heat pumps, our full inverter system automatically adjusts the compressor and fan speed — saving up to 70% energy while keeping the water temperature stable and comfortable.
All-Weather Performance
Designed for Malaysia’s tropical climate, it operates efficiently even on rainy or cloudy days. The system includes auto-defrost technology to ensure reliable heating all year round.
Smart Wi-Fi Control
Control your pool anytime, anywhere using our mobile app. Monitor temperature, schedule heating, and track energy use right from your smartphone — ultimate convenience at your fingertips.
Eco-Friendly & Energy Saving
Uses R32 refrigerant, which delivers powerful heating with lower environmental impact. You enjoy warm water while contributing to a greener planet — and saving on electricity bills.
Ultra-Quiet Operation
Equipped with low-noise inverter compressors and DC brushless fans, the system runs as quiet as 40dB — so you can enjoy a peaceful swim without disturbance.
Durable & Smart Design
Built with a titanium heat exchanger and anti-corrosion housing, it’s suitable for both saltwater and chlorinated pools. The smart diagnostic system also provides self-protection alerts to keep your unit running efficiently.
INVERTER QUIET PRO SERIES
| Model | PV050 | PV060 | PV070 | PV080 |
|---|---|---|---|---|
| Advised Pool Volume (m³) | 55~100 | 60~110 | 60~120 | 70~130 |
| Operating Air Temp (°C) | -7~43 | |||
| Heating Capacity (kW) Air 27°C, Water 26°C, RH 80% |
20.0~4.0 | 24.0~4.8 | 28.0~5.6 | 32.5~6.5 |
| COP | 6.0~14.8 | 6.0~15.0 | 6.0~15.0 | 6.0~15.0 |
| COP at 50% Capacity | 11 | |||
| Sound Pressure (dB(A)) | 43~53 | 44~54 | 45~56 | 45~57 |
| Sound Pressure (50% Capacity) | 44 | 45 | 48 | 49 |
| Cooling Capacity (kW) Air 35°C, Water 28°C, RH 80% |
10.1 | 11.8 | 13.8 | 15.6 |
| Heat Exchanger | Spiral Titanium Tube in PVC Shell | |||
| Casing | ABS Plastic Casing | |||
| Refrigerant | R32 (Eco-Friendly) | |||
| Power Supply | 220–240V / 50–60Hz ※ PV080 available in 400V 3-Phase upon requ
|
|||
COP
KW
dB
Saving
A new experience in heated swimming pool.
Frequently Asked Questions
How long does it take to heat my pool?
Depends on pool volume and target temperature, but our full-inverter models typically bring a residential pool up to temperature within a few hours and hold it efficiently afterward, even overnight.
Will this work with my existing pool?
Yes — our heat pumps are compatible with both saltwater and chlorinated pools and can be retrofitted onto most existing plumbing without major rework.
How do I know which model (PV050–PV080) I need?
It’s based on your pool’s volume — see the “Advised Pool Volume” row in the spec table above. Not sure? Send us your pool dimensions and we’ll recommend the right size.
Does PoolVenture install it?
Yes — installation, commissioning, and app setup are included when you book through us, and it integrates directly with the rest of your Smart Pool System.
